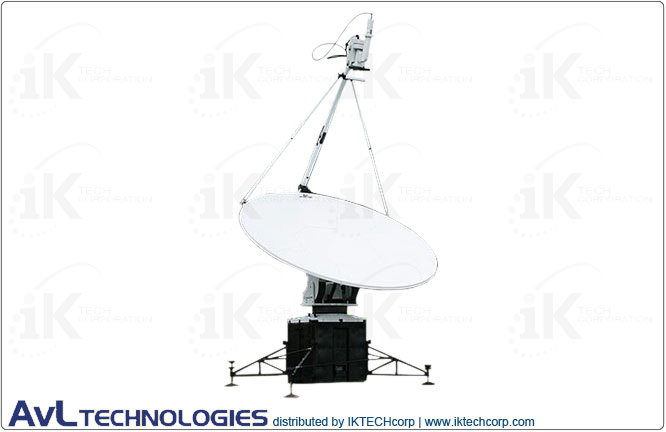

AvL 2020FA 2,0 m SNG Motorizado Quad-Band FlyAway Antena de Banda C INSAT

AvL 2020FA 2.0m SNG Antena FlyAway de cuatro bandas motorizada 2 puertos INSAT de banda C

IKtechcorp es el distribuidor de AVL Antanna Systems, un fabricante y proveedor líder de equipos satelitales comerciales. AVL Technologies ofrece una amplia gama de antenas utilizadas en las industrias VSAT, DTH, COTM, Teleport, Cable y Broadcast. Satélite, DTH, VSAT, Flyaway, implementación rápida , sólo recepción, RF, punto automático motorizado, antenas de vehículos
• Rx/Tx Feed: INSAT de banda C de 2 puertos
- Recibir: 4.50 - 4.80 GHz
- Transmitir: 5.85 -6.425 GHz

Código: avl_2020fa_2m_c_insat

Llamar para preguntar el precio

Descripción

Especificaciones

Documentación

AvL 2020FA 2.0m SNG Motorized Quad-Band FlyAway Antenna 2-port C-Band INSAT

Summary

AvL 2020FA 2.0m SNG Motorized Quad-Band FlyAway Antenna 2-port C-Band INSAT
AvL's Model 2.0m 2020FA FlyAway SNG antenna system offers standard wind performance in a lightweight and portable package. All 2020FA FlyAway SNG antenna systems have positioners integrated into cases for easy set-up; these antennas can be flown anywhere, then set up and operational within minutes. These antenna systems are produced in high volume for a significant U.S. Army program.

AvL’s FlyAway SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability.

Each Flyaway Antenna is priced to include the AvL carbon fiber antenna and auto-acquisition controller for ease of operation. As with all AvL antenna systems, no laptop is necessary to operate the controller, the antennas interface with any modem, RF electronics, or satellite service.
AvL 2020FA C-Band 2.0m SNG Systems feature:
• Packs into three or four cases depending on options selected; positioner is integrated into one
• 2.0m Segmented 9-piece Carbon Fiber Reflector
• 2-man lift
• 2220 Rugged/Heavy Duty Case-Based Positioner
• Quad-band feed capability:
-Ku-Band (LP)
-Ka-Band (LP or CP)
-X-Band (CP)
-C-Band (LP or CP) available for some international locations
• Zero Backlash Az/El drive system with patented AvL Cable Drive Positioner
• Elevation over azimuth mount geometry
• Polarization adjustment by motorized rotation of linear feeds
• Case-based systems with the positioner integrated into one case for stability and ease of set-up
• Fully compliant for FCC and Intelsat; Eutelsat compliance optional
• One button auto-acquisition controller
• 15-Minute Setup

Technical Specifications Diagram

Inquire

AvL 2020FA 2.0m SNG Motorized Quad-Band FlyAway Antenna 2-port C-Band INSAT

MECHANICAL SPECIFICATIONS

Az/El Drive

Motorized AvL Zero Backlash Cable Drive (Patent Pending)

Polarization Drive System

Motorized Rotation of Feed

Reflector Construction

2.0m Segmented 9-piece Carbon Fiber

Axis Travel ▼

Azimuth

±200°

Elevation (operational)

0° - 90° with ±200° Az Travel

Polarization (LP feeds) ±95° Adjustable within <1°

Az/El Speed: ▼

Slewing/Deploying (typical) 2°/sec Elevation: 1°/sec El

Peaking (typical) 0.2°/sec

Motors

24 VDC Variable Speed, Constant Torque

Standard Interfaces: ▼

BUC Mounting Feed boom or behind reflector (additional CFE case or optional case required)

RF Std. 50 ohm Coax (2) at base, cover flange at feed Tx port

Electrical 30 ft. cable with connectors for controller

Manual/Emergency Drive Handcranks for Az and El, Knob on Pol axis

Transit Configuration: ▼

Three rugged, weather-resistant plastic cases, total weight: 450 lbs.

2020 Motorized Positioner 26" x 24" x 30", 170 lbs

Outriggers/Feed Boom/Ku or Ka Feed 71” x 18” x 19”, 110 lbs. (includes Ku or Ka feed)

Reflector Panels 38” x 38” x 22”, 170 lbs.

Additional Feeds 43” x 27” x 20”, 70 lbs. typical, dependent on feed options selected (optional)

Set-up Time Less than 15 minutes.

ENVIRONMENTAL SPECIFICATIONS

Wind – Survival

80 mph in zenith position

Wind - Operational: ▼

Without Anchoring 30 mph

With Anchoring 30 mph gusting to 45 mph

Pointing Loss in Wind: ▼

Ku-band

0.1 dB typical, 0.5 dB max

Ka-band

1.0 dB typical, 2 dB max

Temperature: ▼

Operational

-22° to 125° F (-30° to 52° C)

Survival

-40° to 140° F (-40° to 60° C)

RF / ELECTRICAL SPECIFICATIONS
Receive Transmit

Feed Type ►

Opt. 2-Port C - INSAT
Requires special approval by satellite operator

Frequency Range (GHz)

4.50 - 4.80 Ghz

6.725 - 7.025 Ghz

Gain (mid-band) @ Horn Interface (dBi)

37.9 dBi

41.3 dBi

-3dB Beamwidth (mid-band)

2.3°

1.5°

Antenna Noise Temperature (midband)

48° K

Radiation Pattern Compliance

ITU-R S.580-6

Maximum Feed Transmit (Tx) Power 1000 watts per port

Linear Cross-Pol Isolation in pointing cone)

35 dB / 30 dB
35 dB / 30 dB

Feed Port Isolation – TX to RX (dB) 35 dB 70 dB

CONTROLLER SPECIFICATIONS: STANDARD

Controller Type ► Std. Auto-Acquire with Opt. Ethernet IP Interface

Standard Feature ▼

Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites

Integration Embedded w/ Handheld, incl. Shelf-Mount P/S (optional 1RU w/ front-panel keypad + integral P/S)

User Interface Menu-driven display w/ keypad

Input Power 115/230 VAC (at rack); up to 200W

Software Upgrades/Options

Inclined orbit tracking (using step-track or TLE track); automatic band sensing

CONTROLLER SPECIFICATIONS: OPTIONAL

Controller Type ► Opt. Enhanced Auto-Acquire with Ethernet IP Interface

Standard Feature ▼

Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites

Integration Embedded w/ Ethernet IP Interface (P/S optional) (optional rack-mount P/S available)

User Interface Intelligent/simple GUI for on-board or remote CFE laptop

Input Power 28V DC (at antenna positioner); optional 115/230 VAC rack-mount power supply; up to 200W

Software Upgrades/Options

Inclined orbit tracking (using step-track, memory track, or TLE track); automatic band sensing

Available Options, Upgrades & Services

Optional:
• BUC/HPA mounting
• Optional 75 ohm coax
• Waveguide interconnect options
• Beacon receiver – inclined orbit tracking – resolvers/upgrade
• Grounding options (lightning conductor)
• Anchoring kit options
• Custom logo on reflector face (1- or 2-color; per AvL Logo Policy)
• Controller options – see above
• Spare parts kit

Technical Specifications Diagram

Inquire

AVL 2020FA 2m Antenna Datasheet (98.83KB)
