NJT8103N New Japan Radio 3W de la Banda C (Estándar 5,85 a 6,425 GHz) Bloque Convertidor BUC N-Tipo de Conector de Entrada de

New Japan Radio NJT8103N 3W C-Band (Estándar 5.85 a 6.425 GHz) Convertidor en bloque BUC Entrada de conector tipo N

IKtechcorp es el distribuidor de New Japan Radio Company (NJRC), un fabricante y proveedor líder de equipos satelitales comerciales. NJRC/JRC ofrece una amplia gama de convertidores Block Up (BUC), Low Noise Blocks (LNB) y Low Noise Amplificadores (LNA)

<× * Línea de frecuencia de RF
• Banda C completa: 5,85 a 6,725 GHz (P1dB)
• Banda C estándar: 5,85 a 6,425 GHz
* Potencia de salida de alta eficiencia
• P1dB: +34,5 dBm mín. sobretemperatura
• ACPR: -24 dBc @ Pout = +34.

Código: NJT8103N

Llamar para preguntar el precio

New Japan Radio NJRC NJT8103N 3W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input



Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
Summary of Features:

RF Frequency	5.85 to 6.425 GHz (Standard C-band)
IF Frequency	950 to 1,525 MHz
Local Frequency	4.90 GHz
Input Interface	N-type, female (75 ohm)
Output Power @ 1 dB G.C.P.	+34.5 dBm min. over temperature
Linear Gain	59 dB nom., 53 dB min.
Power Requirement	+12 to +30 VDC
Power Consumption	21 W
Weight	800 g [1.8 lbs ]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8103N 3W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input

TYPICAL SPECIFICATIONS

RF Frequency	5.85 to 6.425 GHz (Standard C-band)
IF Frequency	950 to 1,525 MHz
Local Frequency	4.90 GHz
Input Interface	N-type, female (75 ohm)
Output Power @ 1 dB G.C.P.	+34.5 dBm min. over temperature
Linear Gain	59 dB nom., 53 dB min.
Gain Variation over frequency	5 dBp-p max. over 575 MHz / 2 dBp-p max. over 36 MHz
Gain Stability over temperature	2 dBp-p typ., 5 dBp-p max.

*Requirement for External Reference* ▼
Frequency	950 to 1,525 MHz
ACPR	-26 dBc typ. @ Pout = +34.5 dBm

L.O. Phase Noise
@ 100 Hz	-60 dBc/Hz max.
@ 1 kHz	-70 dBc/Hz max.
@ 10 kHz	-80 dBc/Hz max.
@ 100 kHz	-90 dBc/Hz max.

Input V.S.W.R.	2 : 1 max
Output V.S.W.R.	2 : 1 max
Power Requirement	+12 to +30 VDC
Power Consumption	21 W
Mute	Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

*Mechanical & Environmental* ▼
Temperature Range (ambient)	-40 to +60 C (operating) -40 to +75 C (storage)
Dimension & Housing ( without Interface Connectors )	135.4 (L) × 85 (W) × 56 (H) mm [5.33” (L) x 3.35” (W) x 2.20” (H)]
Weight	800 g [1.8 lbs ]

Technical Specifications Diagram

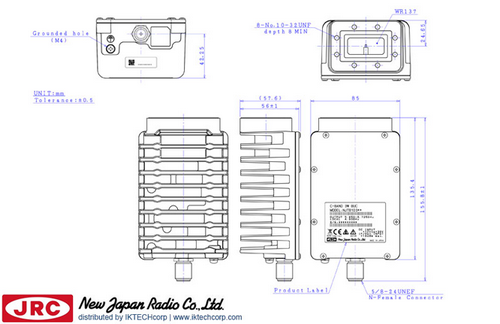

New Japan Radio NJRC NJT5667F 2W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC F-Type Connector Input Mechanical Diagram Drawing

Compliance Standard

Inquire

NJT8103_rev02 (2.03MB)
