NJT5764FM New Japan Radio 10W de la Banda C (Insat 6,725 a 7,025 GHz) Bloque Convertidor BUC F-Tipo de Conector de Entrada de

NJT5764FM New Japan Radio 10W de la Banda C (Insat 6,725 a 7,025 GHz) Bloque Convertidor BUC F-Tipo de Conector de Entrada de

New Japan Radio NJT5764FM 10W C-Band (Insat 6.725 a 7.025 GHz) Convertidor en bloque BUC Entrada de conector tipo F


IKtechcorp es el distribuidor de New Japan Radio Company (NJRC), una fabricante y proveedor líder de equipos satelitales comerciales. NJRC/JRC ofrece una amplia gama de convertidores de bloque (BUC), bloques de bajo ruido (LNB) y amplificadores de bajo ruido (LNA)

* Alta eficiencia & amp; Baja distorsión
• P1dB: +40 dBm min. sobretemperatura
• IM3: -28 dBc @ Pout = +37 dBm
• Consumo de energía: 73 W
* Tamaño compacto y amp; Peso ligero
• Peso: 3,2 kg
* Opción de alimentación de CA
* LED Indicador
* Cumplimiento de RoHS

Código: NJT5764FM
Llamar para preguntar el precio

New Japan Radio NJT5764FM 10W C-Band (Insat 6.725 to 7.025 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJT5764FM 10W C-Band (Insat 6.725 to 7.025 GHz) Block Up Converter BUC F-Type Connector Input Product Picture, Image, Price, Pricing

Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.


Summary of Features:

RF Frequency 6.725 to 7.025 GHz (Insat C-band)
IF Frequency 965 to 1,265 MHz
Local Frequency 5.76 GHz
Input Interface F-type, female (75 ohm)
Output Power @ P1dB 10W Linear (+40 dBm min.)
Linear Gain 64 dB nom., 58 dB min.
Power Requirement +18 to +60 VDC
Power Consumption 73 W
Weight 3.2 kg [7.0 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJT5764FM 10W C-Band (Insat 6.725 to 7.025 GHz) Block Up Converter BUC F-Type Connector Input



TYPICAL SPECIFICATIONS

Output Interface Waveguide, CPR137 (with Groove)
Input Interface F-type, female (50 ohm)
Output Power @ 1 dB G.C.P. +40 dBm min. over temperature
Linear Gain 64 dB nom., 58 dB min.
IM3 -28 dBc typ. @total power = +40dBm - 3dB
Requirement for External Reference ▼
Frequency 10 MHz (sine-wave)
Input Power -5 to +5 dBm @ Input port
Phase Noise -125 dBc/Hz max. @ 100 Hz
-135 dBc/Hz max. @ 1 kHz
-140 dBc/Hz max. @ 10 kHz

L.O. Phase Noise -60 dBc/Hz max. @ 100Hz
.-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
Receive Band Noise Density -87 dBm/4kHz max. @4.500 to 4.800 GHz
Input V.S.W.R. 2.0 : 1 max.
Output V.S.W.R. 2.0 : 1 max.
Power Requirement +18 to +60 VDC
Consumption 73 W
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
ACPR -26 dBc typ. @ Pout = +34.5 dBm
LED Indicator GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
Port for Voltage Input Same as IF Connector
Mechanical & Environmental ▼
Temperature Range (ambient) -40 to +55 °C (operating),
-40 to +75 °C (storage)
Waterproof/Dustproof (IP Code) IP 67
Dimension & Housing ( without Interface Connectors) 219.5 mm (L) x 175 mm (W) x 99 mm (H) [8.64" (L) x 6.89" (W) x 3.90" (H)]
Weight 3.2 kg [7.0 lbs]


Technical Specifications Diagram

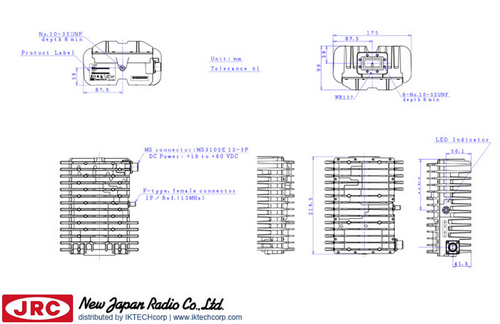

New Japan Radio NJRC NJT5667F 2W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC F-Type Connector Input Mechanical Diagram Drawing
