New Japan Radio NJRC NJT8304N 4W Ku-Band (estándar de 14.0 a 14.5GHz) Convertidor en bloque BUC Entrada de conector tipo N

IKtechcorp es el distribuidor de New Japan Radio Company (NJRC), un fabricante y proveedor líder de equipos satelitales comerciales. NJRC/JRC ofrece una amplia gama de convertidores Block Up (BUC), Low Noise Blocks (LNB) y Low Amplificadores de ruido (LNA)

<× * Línea de frecuencia de RF
• Banda Ku universal: 13,75 a 14,5 GHz
• Banda Ku estándar: 14.0 a 14.5 GHz
* Potencia de salida de alta eficiencia
• P1dB: +36.0 dBm min. sobretemperatura
• ACPR:

Código: NJT8304N
Llamar para preguntar el precio

New Japan Radio NJRC NJT8304N 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC N-Type Connector Input

New Japan Radio NJRC NJT8304N 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC N-Type Connector Input Product Picture, Image, Price, Pricing

Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.


Summary of Features:

RF Frequency 14.0 to 14.5GHz (Standard Ku-band)
IF Frequency 950 to 1,450 MHz
Local Frequency 13.05 GHz
Input Interface N-type, female
Output Power @ 1 dB G.C.P. +36 dBm min. over temperature
Linear Gain 62 dB nom., 56 dB min.
Power Requirement +12 to +30 VDC
Power Consumption 28 W
Weight 500g [1.1 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8304N 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC N-Type Connector Input



TYPICAL SPECIFICATIONS

Output Interface Waveguide, WR75 (with Groove)
RF Frequency 14.0 to 14.5GHz (Standard Ku-band)
IF Frequency 950 to 1,450 MHz
Local Frequency 13.05 GHz
Input Interface N-type, female
Output Power @ 1 dB G.C.P. +36 dBm min. over temperature
Linear Gain 62 dB nom., 56 dB min.

Requirement for External Reference ▼
Frequency 10 MHz
Input Power -5 to +5 dBm @ Input port
Phase Noise -125 dBc/Hz max. @ 100 Hz
-135 dBc/Hz max. @ 1 kHz
-140 dBc/Hz max. @ 10 kHz
ACPR -26 dBc min. @ Pout = +35.5 dBm

L.O. Phase Noise
-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz

Receive Band Noise Density @ Pout <= +36 dBm -156 dBm/Hz max. @10.95 to 12.25 GHz
-152 dBm/Hz max. @12.25 to 12.75 GHz
-156 dBm/Hz max. @10.95 to 12.75 GHz
Input V.S.W.R. 2.0 : 1 max
Output V.S.W.R. 2.0 : 1 max
Power Requirement +12 to +30 VDC
Power Consumption 28 W
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

Mechanical & Environmental ▼
LED Indicator GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient) -40 to +60 C (operating)
-40 to +75 C (storage)
Waterproof/Dustproof (IP Code) IP 67
Dimension & Housing ( without Interface Connectors ) 98 mm (L) x 98 mm (W) x 42.5 mm (H) [3.86" (L) x 3.86" (W) x 1.65" (H)]
Weight 500g [1.1 lbs]


Technical Specifications Diagram

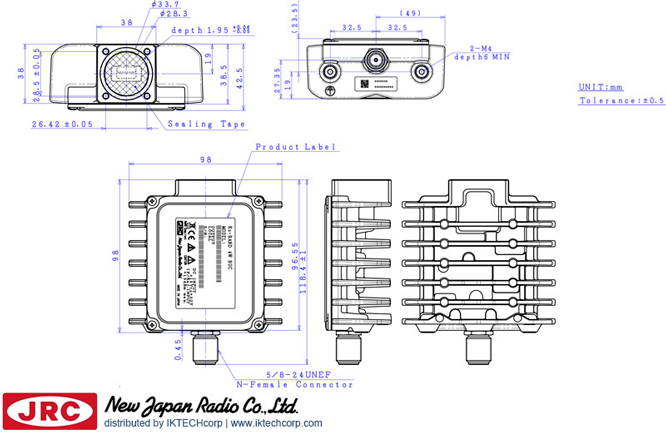

New Japan Radio NJRC NJT8304N 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC N-Type Connector Input Mechanical Diagram Drawing
