NJT8304F New Japan Radio 4W de la Banda Ku (Estándar 14,0 14,5 GHz ) Bloque Convertidor BUC F-Tipo de Conector de Entrada de

New Japan Radio NJRC NJT8304F 4W Ku-Band (estándar de 14.0 a 14.5GHz) Convertidor en bloque BUC Entrada de conector tipo F

IKtechcorp es el distribuidor de New Japan Radio Company (NJRC), un fabricante y proveedor líder de equipos satelitales comerciales. NJRC/JRC ofrece una amplia gama de convertidores Block Up (BUC), Low Noise Blocks (LNB) y Low Amplificadores de ruido (LNA)

<× * Línea de frecuencia de RF
• Banda Ku universal: 13,75 a 14,5 GHz
• Banda Ku estándar: 14.0 a 14.5 GHz
* Potencia de salida de alta eficiencia
• P1dB: +36.0 dBm min. sobretemperatura
• ACPR:

Código: NJT8304F

$535,00

Cantidad:

New Japan Radio NJRC NJT8304F 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC F-Type Connector Input



Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
Summary of Features:

RF Frequency	14.0 to 14.5GHz (Standard Ku-band)
IF Frequency	950 to 1,450 MHz
Local Frequency	13.05 GHz
Input Interface	F-type, female
Output Power @ 1 dB G.C.P.	+36 dBm min. over temperature
Linear Gain	62 dB nom., 56 dB min.
Power Requirement	+12 to +30 VDC
Power Consumption	28 W
Weight	500g [1.1 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8304F 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC F-Type Connector Input

TYPICAL SPECIFICATIONS

Output Interface	Waveguide, WR75 (with Groove)
RF Frequency	14.0 to 14.5GHz (Standard Ku-band)
IF Frequency	950 to 1,450 MHz
Local Frequency	13.05 GHz
Input Interface	F-type, female
Output Power @ 1 dB G.C.P.	+36 dBm min. over temperature
Linear Gain	62 dB nom., 56 dB min.

*Requirement for External Reference* ▼
Frequency	10 MHz
Input Power	-5 to +5 dBm @ Input port
Phase Noise	-125 dBc/Hz max. @ 100 Hz -135 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz
ACPR	-26 dBc min. @ Pout = +35.5 dBm

L.O. Phase Noise
	-60 dBc/Hz max. @ 100 Hz
	-70 dBc/Hz max. @ 1 kHz
	-80 dBc/Hz max. @ 10 kHz
	-90 dBc/Hz max. @ 100 kHz
	-100 dBc/Hz max. @ 1 MHz

Receive Band Noise Density @ Pout <= +36 dBm	-156 dBm/Hz max. @10.95 to 12.25 GHz -152 dBm/Hz max. @12.25 to 12.75 GHz -156 dBm/Hz max. @10.95 to 12.75 GHz
Input V.S.W.R.	2.0 : 1 max
Output V.S.W.R.	2.0 : 1 max
Power Requirement	+12 to +30 VDC
Power Consumption	28 W
Mute	Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

*Mechanical & Environmental* ▼
LED Indicator	GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient)	-40 to +60 C (operating) -40 to +75 C (storage)
Waterproof/Dustproof (IP Code)	IP 67
Dimension & Housing ( without Interface Connectors )	98 mm (L) x 98 mm (W) x 42.5 mm (H) [3.86" (L) x 3.86" (W) x 1.65" (H)]
Weight	500g [1.1 lbs]

Technical Specifications Diagram

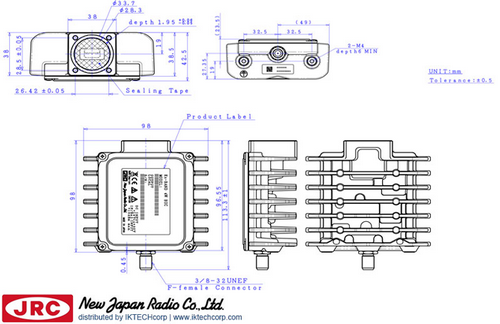

New Japan Radio NJRC NJT8304F 4W Ku-Band (Standard 14.0 to 14.5GHz ) Block Up Converter BUC F-Type Connector InputMechanical Diagram Drawing

NJT8304_rev02 (2.57MB)

Compliance Standard
