VIKING FLT-KUTRF Brouillage Terrestre Filtre passe-Bande, Bande Ku (10,95 - 12,75 GHz)
Viking FLT-KUTRF Filtre passe-bande d'interférence terrestre, bande Ku (10,95 - 12,75 GHz)
Code produit: VIKING_FLT-KUTRF

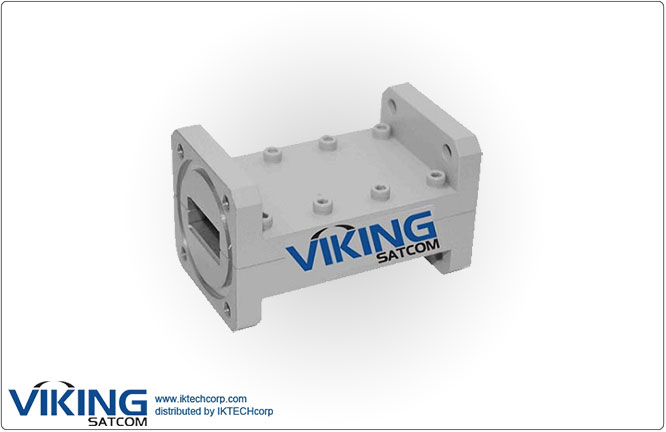

VIKING FLT-KUTRF Terrestrial Interference Bandpass Filter, Ku Band (10.95 - 12.75 GHz)
 |
||
| Summary | ||
| VIKING FLT-KUTRF Ku Band Transmit Reject Filter Designed for full Ku-Band downlink reception and uplink suppression. This versatile filter is ideal for VSAT applications around the world. VIKING FLT-KUTRF Feature: • Ku Band Transmit Reject Filter • Ideal for VSAT Applications • Passband: 10.70 - 12.75 GHz • Reject Band: 13.75 - 14.50 GHz • Rejection: 70 dB Min • Insertion Loss: 0.1 dB Max • VSWR: 1.20:1 Max • Flanges: WR75 Cover/WR75 Grooved |
||

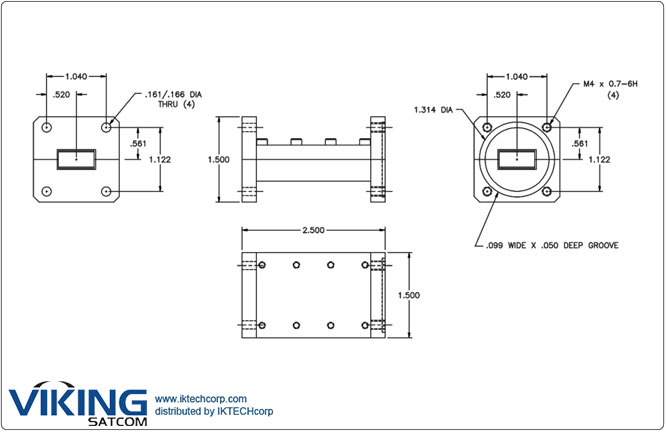

| Technical Specifications Diagram | ||
| See "Specifications" Tab | ||
VIKING FLT-KUTRF Terrestrial Interference Bandpass Filter, Ku Band (10.95 - 12.75 GHz)
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
