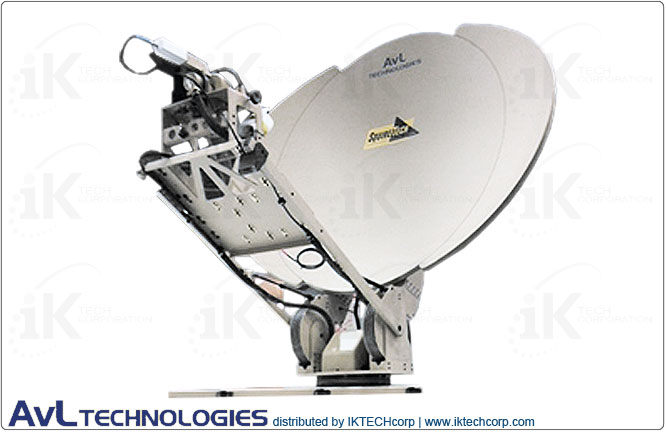

AvL 1212 Premium SNG 1,2m Моторизованная Автомобильная Спутниковая антенна Ku-Band

AvL 1212 Premium SNG 1,2 м для моторизованного крепления на транспортном средстве/Спутниковая антенна DriveAway, 2 порта, Ku-диапазон (улучшенная кросс-Pol comp.)

IKtechcorp является дистрибьютором AVL Antanna Systems, ведущего производителя и поставщика коммерческого спутникового оборудования. AVL Technologies предлагает широкий спектр антенн, используемых в VSAT, DTH, COTM, телепортации, кабельной и радиовещательной отраслях. Спутник, DTH, VSAT, Flyaway, быстрое развертывание, только прием, RF, моторизованная автоматическая точка, автомобильные антенны
• Rx/Tx Feed: 2-Port Mode-Matched Ku-Band (CP)
- Прием : 10,95–12,75 ГГц
- Передача: 13.

Модель: avl_1212_ku_premium

Цена по запросу

AvL 1212 Premium SNG 1.2m Motorized Vehicle-Mount/DriveAway Satellite Antenna 2-Port Ku-Band (enhanced Cross-Pol comp.)



Summary
AvL 1212 Premium SNG 1.2m Motorized Vehicle-Mount/DriveAway Satellite Antenna 2-Port Ku-Band (enhanced Cross-Pol comp.) AvL's 1.2m vehicle mount SNG antenna systems offer strong performance in a small, lightweight and low-profile package. The 1.2m antenna systems are designed to exceed the highest global performance expectations. AvL’s SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability. Typically these antennas are used in signal contribution for high data rate and bandwidth as well as high power broadcast or similar applications. AVL 1212 model is Eutelsat certified and ready to use. AvL 1212 Ku-Band Vehicle-Mount Premium Military Antenna Systems feature: • Model 1212 with 2-Port Mode-Matched Ku-Band (enhanced Cross-Pol comp.); • Optional feeds include 2-port Ka (commercial or miliary) and 2-port X • High precision azimuth bearing • Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement • Non-load-bearing 1.2m AvL carbon fiber single-piece reflector with surface treatment for Ka-band • Integrated reflector backing structure for minimized stow height • Stows to 15" H (38.1 cm H) • Wide boom to allow large HPA envelope • Optional saddlebag mount for larger HPAs • High-torque elevation motor • Through-pedestal cross-axis waveguide kit • Jog control or fully automatic auto-acquisition controllers • RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle • 25ft (8m) RG59 coax and controller interconnect cables • Optional Transmit Rotary Joint on Feed • Limited function 3-axis jog controller with auto-stow • Optional aerodynamic cowlings

Technical Specifications Diagram
Inquire

AvL 1212 Premium SNG 1.2m Motorized Vehicle-Mount / DriveAway Satellite Antenna 2-Port Ku-Band (enhanced Cross-Pol comp.)

MECHANICAL SPECIFICATIONS

Az/El Drive	Motorized AvL Zero Backlash Cable Drive (Patent Pending)
Polarization Drive System	Motorized Worm Gear Drive
Reflector Construction	1.2m Single Piece Carbon Fiber
*Axis Travel* ▼
*Azimuth*	400° (±200°)
*Elevation* ▼
Mechanical	0° to 90° of Reflector Boresight
Electrical	Standard Limits at 5° to 65° (CE approval) or 0° to 90°
*Polarization*	±95° for 2-port and 3-port Feeds; ±50° for 2-port Wideband and 4-port Feeds
*Az/El Speed* ▼
Slewing/Deploying (typical)	2°/second Az; 1°/second El
Peaking (typical)	0.2°/second
Motors	24 VDC Variable Speed, Constant Torque
*RF Interface* ▼
BUC/HPA Mounting	Feed Boom (50 lbs.; Max. BUC envelope: 22 L x 13.75 W x 8.5 H inches (55.9 L x 34.9 W x 21.6 H cm)), Rear of Reflector or Inside Vehicle
Axis Transition	Twist-Flex or Rotary Joints
Waveguide	WR75 Cover Flange at Interface Point
Coax	RG59 run from feed to base plus 25 ft (8m)
Electrical Interface	One 25 ft (8 m) Cable with Connectors for Controller
Manual/Emergency Drive	Handcrank on Az, El and Pol axes
Weight (approximate)	115 - 165 lbs. (52 - 75 kg) depending on options selected
Stowed Dimensions	69 L x 48 W x 16.3 H inches (175 L x 122 W x 41 H cm)

ENVIRONMENTAL SPECIFICATIONS

Wind - Survival	Deployed: 75 mph (121 kph); Stowed: 100 mph (161 kph)
Wind - Operational	30 mph (48 kph), Gusts to 45 mph (72 kph)
*Pointing Loss in Wind (Ku RX)*: ▼
20 mph (32 kph)	0.2 dB typical
30 mph gusting to 45 mph	0.8 dB typical

*Temperature:* ▼
Operational	-22° to 125° F (-30° to 52° C)
Survival	-40° to 140° F (-40° to 60° C)

RF / ELECTRICAL SPECIFICATIONS	Receive	Transmit

Feed Type	Std. 2-Port Ku-Band DBS bands avail. upon request

Frequency Range (GHz)	10.95 - 12.75	13.75 - 14.50
Polarization Configuration	Linear Orthogonal Standard, Optional Co-Pol
Gain (mid-band) (dBi)	41.6	43.1
Beamwidth (-3 dB)	1.5°	1.2°
G/T, midband, clear horizon	21.4 dB/˚ K with 50° LNB
Antenna Noise Temperature @ 20° El, midband	54° K
Radiation Pattern Compliance	FCC 25.209, ITU-R S.580-6, IESS 208
Power Handling Capability		1 KW per port
VSWR	1.30:1	1.30:1
Axial Ratio, CP only, within Pointing Cone (dB)
*Cross-Polarization Isolation (dB)* ▼
On Axis	35	35
Within Pointing Cone	28 Std. Precision	30 Std. Precision
	25 Mode-Match	35 Mode-Match
Feed Port Isolation – Tx to Rx (dB)	35	80 (includes filter)

CONTROLLER SPECIFICATIONS

*Controller Type* ►	*Three-axis Jog Control & Display with Auto-Stow*
*Optional Upgrades*
Semi-automatic Operation	Drive to calculated position based on operator entered vehicle location, heading, plus satellite (longitude or listed)
Automatic Operation	Drive to calculated position based on auto GPS and Flux-Gate Compass data and satellite peaking with LNB signal
Auto-acquisition	One-button acquisition of selected satellite including peaking and optimization of cross-pol (certified for auto- commissioning on most satellite services)
Size	Two Rack Units for Semi-automatic & Automatic Controllers Single Rack Unit for Auto-acquisition
Input Power	110/240 VAC, 1 ph, 50/60 Hz, 6/3A peak, 1A continuous

CONTROLLER SPECIFICATIONS: OPTIONAL

*Optional Controller* ►	*AvL AAQ*
Features	AvL one button auto-acquisition of selected satellites, including peaking and optimization of cross pol. Internal movement detector and automatic stow. Includes a hand-held control and separate power supply. Certified for auto-commissioning on most satellite services.
Size	Embedded ACU with separate1 RU power supply
Input Power	100 - 240 VAC 50/60 Hz 4 A peak, 300 W power supply

Available Options, Upgrades & Services

• Upgrade Feed to:
- 2-Port Ku-Band Mode-Match
- 4-Port Ku-Band Wideband
- 2 or 4-Port Ka-Band
- 2-Port X-Band
• Optional H/V switch (Ku-Band wideband)
• Optional Rotary Joint on Pol Axis with opt. Flex W/G to BUC
• Add Co-polarization Kit (for 2-port Ku feeds only) - configures Rx and Tx to same polarization sense
• Mounting Pallet (adds 2.0” (5 cm) to stow height)
• Add BUC/HPA Mounting (NOTE: minimum elevation may be restricted by these options)
• Upgrade to Custom RF/IF I/O cabling configurations available
• Custom Colorization (contact factory for available colors)
• Add Custom Logo on Reflector Face (1- or 2-Color; per AvL Logo Policy)
• Spare Parts Kit

Technical Specifications Diagram

Inquire

Compliance Standard

Inquire

AVL 1210 Antenna Datasheet (104.81KB)
