AvL 1810 Premium SNG 1,8m Моторизованная Автомобильная Спутниковая Антенна Precision Ku-Band

AvL 1810 Premium SNG/Военная 1,8-метровая моторизованная переносная автомобильная спутниковая антенна, 2 порта прецизионного Ku-диапазона (стандартная кросс-Pol comp.)

IKtechcorp является дистрибьютором AVL Antanna Systems, ведущего производителя и поставщика коммерческого спутникового оборудования. AVL Technologies предлагает широкий спектр антенн, используемых в VSAT, DTH, COTM, Teleport, Cable и Broadcast. отрасли. Спутник, DTH, VSAT, Flyaway, быстрое развертывание, только прием, RF, моторизованная автомобильная точка, автомобильные антенны
• Rx/Tx Feed: 2-Port Precision Ku-Band (LP)
- Прием: 10,95–12,75 ГГц
- Передача: <

Модель: avl_1810_ku_premium

Цена по запросу

Описание

Характеристики

Документация

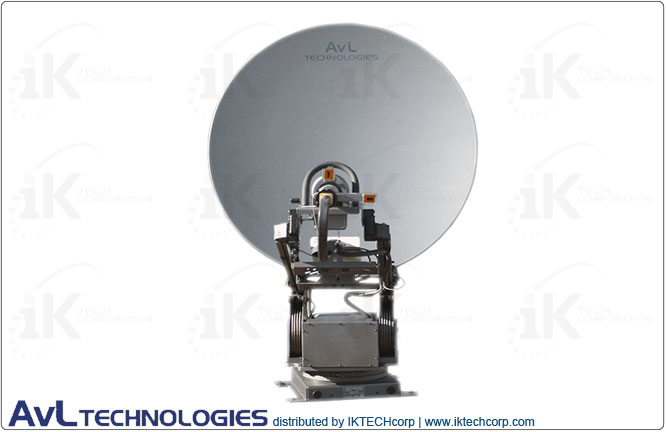

AvL 1810 Premium SNG/Military 1.8m Motorized Transportable Vehicle-Mount Satellite Antenna 2-Port Precision Ku-Band (standard Cross-Pol comp.)

Summary

AvL 1810 Premium SNG/Military 1.8m Motorized Transportable Vehicle-Mount Satellite Antenna 2-Port Precision Ku-Band (standard Cross-Pol comp.)
AvL's 1.8m vehicle-mount/drive away SNG antenna systems offer strong performance in a small, lightweight and low-profile package. The 1.8m antenna systems offer standard Ku-band, with L- and X-band optional. The antennas feature integrated GPS and level sensors for automatic vehicle tilt compensation.

AvL’s SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability. Typically these antennas are used in signal contribution for high data rate and bandwidth as well as high power broadcast or similar applications.
AvL 1810 Ku-Band Vehicle-Mount Premium SNG Antenna Systems feature:
• Non-load-bearing 1.8m AvL carbon fiber single-piece reflector with surface treatment for Ka-band
• High-precision azimuth bearing
• Integrated backing structure for minimized stow height
• Wide booms to allow larger HPA envelope
• Jog control or fully automatic auto-acquisition controllers
• Feed options for Ku-, Ka- and X-band; optional C-band for international
• RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle
• 25ft (8m) RG59 coax and controller interconnect cables
• Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement
• Stows to 17.7" H (45 cm H)
• Optional saddlebag mount for larger HPAs
• High-torque elevation motor
• Through-pedestal cross-axis waveguide kit
• Optional Transmit Rotary Joint on Feed
• Limited function 3-axis jog controller with auto-stow
• Optional aerodynamic cowlings
• Aerodynamic cowling is available

Technical Specifications Diagram

Inquire

AvL 1810 Premium SNG / Military 1.8m Motorized Transportable Vehicle-Mount Satellite Antenna 2-Port Precision Ku-Band (standard Cross-Pol comp.)

MECHANICAL SPECIFICATIONS

Az/El Drive Motorized Zero Backlash AvL Cable Drive (Patent Pending)

Polarization Drive System Motorized Worm Drive

Reflector Construction 1.8m Single Piece AvL Carbon Fiber

Axis Travel ▼

Azimuth Standard: 400°;   Optional dual waveguide through pedestal: 270°

Elevation

- Mechanical 0-90° antenna boresight

- Electrical Standard limits at 5° to 65° (CE Approval) or 5° to 90°

Polarization ±95° for 2-port and 3-port Ku-Band Feeds;   ±50° (100º Effective) for Dual Ku-Band, 4-port

Az/El Speed ▼

Slewing/Deploying (typical) 2°/second

Peaking (typical) 0.1°/second

Motors 24 VDC Variable Speed, Constant Torque

RF Interface ▼

BUC Mounting Feed boom (100 lbs.;   Max BUC envelope: 30 L x 22 W x 9 H inches (76 L x 56 W x 23 H cm)) orinside truck

Axis Transition Twist-flex or optional rotary joints for Ku-Band;   Pol rotary joint standard for C-Band

Waveguide WR75 Cover Flange at Interface Point

Coax RG59 run from feed to base plus 25 ft. (8m)

Electrical Interface 25 ft. (8 m) Cable with Connectors for Controller

Manual/Emergency Drive Handcrank on Az, El and Pol axes, leads from 12VDC Pol Motor

Weight 295 lbs. (134 kg)

Stowed Dimensions 100 L x 71.4 W x 18.2 H inches (254 L x 181 W x 46.2 H cm); H with opt. controller: 19.3 in (49cm)

Time to Acquisition Less than 15 minutes, 8 minutes typical

Mounting Optional pallet for vehicle roof mounting

ENVIRONMENTAL SPECIFICATIONS

Wind - Survival Deployed: 80 mph (128 kph); Stowed: 125 mph (201 kph)

Wind - Operational 30 mph (48 kph), Gusts to 45 mph (72 kph)

Pointing Loss in Wind (Ku RX): ▼

20 mph (32 kph) 0.1 dB typical

30 mph gusting to 45 mph 0.5 dB typical

(48 kph gusting to 72 kph)

Temperature: ▼

Operational -22° to 125° F (-30° to 52° C)

Survival -40° to 140° F (-40° to 60° C)

RF / ELECTRICAL SPECIFICATIONS Receive Transmit

Feed Type ► Std. Precision Ku-Band

Frequency Range (GHz) 10.95 - 12.75 13.75 - 14.50

Polarization Configuration Linear Orthogonal Standard, Optional Co-Pol

Gain (mid-band) ▼

2-Port Feed 45.0 dBi 46.7 dBi

4-Port Feed 44.8 dBi 46.5 dBi

Beamwidth ▼

-3dB (Degrees) 1.0 0.8

-10 dB (Degrees) 1.8 1.5

Radiation Pattern Compliance FCC §25.209, ITU-R S.580.6

First Sidelobe Level (typical) (dB) -23 -25

Antenna Noise Temperature (midband) 48° K @ 10° El

G/T, midband, clear horizon 24.7 dB/˚K w/ 50°K LNB

Cross-Polarization Isolation (dB) ▼

On-Axis 35 35

Off-Axis (within pointing cone) 28 30

VSWR 1.30:1 1.30:1

Power Handling Capability
1KW at Tx Port

Feed Port Isolation - Tx to Rx (dB) 85 dB

CONTROLLER SPECIFICATIONS

Controller Type ► Three-axis Jog Control & Display with Auto-Stow

Optional Upgrades

Semi-automatic Operation Drive to calculated position based on operator entered vehicle location, heading, plus satellite (longitude or listed)

Automatic Operation Drive to calculated position based on auto GPS and Flux-Gate Compass data & satellite peaking w/ LNB signal

Auto-acquisition One-button acquisition of selected satellite including peaking and optimization of cross-pol (certified for auto- commissioning on most satellite services)

Size Two Rack Units for Semi-automatic & Automatic Controllers

Input Power 110/240 VAC, 1 phase, 50/60 Hz, 10/5 A peak, 1 A continuous

CONTROLLER SPECIFICATIONS: OPTIONAL

Optional Controller ► AvL AAQ

Features AvL one button auto-acquisition of selected satellites, including peaking and optimization of cross pol.   Internal movement detector and automatic stow.   Includes a hand-held control and separate power supply.   Certified for auto- commissioning on most satellite services.

Size Embedded ACU with separate1 RU power supply

Input Power 100 - 240 VAC 50/60 Hz   4 A peak, 300 W power supply

Available Options, Upgrades & Services

• Upgrade Feed to 3- or 4-Port Ku-Band, 2-Port C-Band, 2- or 4-Port Ka-Band, or 2-Port X-Band
• Optional H/V switch (Ku Wideband)
• Optional Rotary Joint on Pol Axis with opt. Flex W/G to BUC
• Mounting Pallet (adds 4.5” (11.4 cm) to stow height)
• Add BUC/HPA Mounting (NOTE: minimum elevation may be restricted by these options)
• Upgrade to Custom RF/IF I/O cabling configurations available
• Custom Colorization (contact factory for available colors)
• Add Custom Logo on Reflector Face (1- or 2-Color; per AvL Logo Policy)
• Spare Parts Kit
