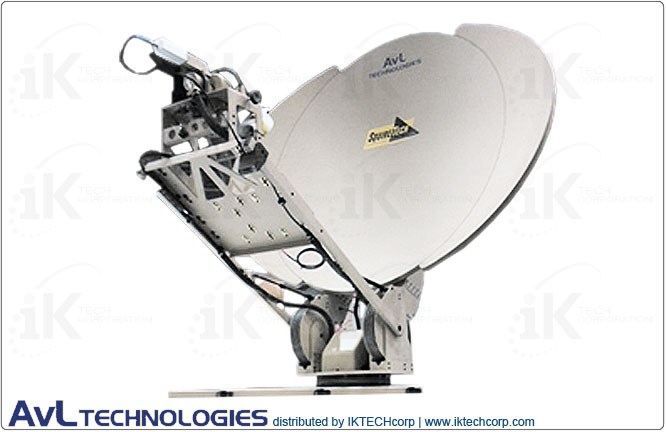

AvL 1212LS Premium Military SNG 1.2m Motorized Vehicle-Mount Satellite Antenna 2-Port X-Band; Eutelsat Certified (Low Stow Profile)
AvL's 1.2m vehicle mount Military SNG antenna systems offer strong performance in a small, lightweight and low-profile package. The 1.2m antenna systems are designed to exceed the highest global performance expectations.
AvL’s Military SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability. Typically these antennas are used in signal contribution for high data rate and bandwidth as well as high power broadcast or similar applications. AVL 1212 model is Eutelsat certified and ready to use.
AvL 1212 X-Band Vehicle-Mount Premium Military Antenna Systems feature:
• Model 1212 with 2-Port Mode-Matched Ku-Band (enhanced Cross-Pol comp.);
• Optional feeds include 2-port Ka (commercial or miliary) and 2-port X
•
High precision azimuth bearing
•
Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement
•
Non-load-bearing 1.2m AvL carbon fiber single-piece reflector with surface treatment for Ka-band
•
Integrated reflector backing structure for minimized stow height
•
Stows to 11" (27.9 cm)
•
Wide boom to allow large HPA envelope
•
Optional saddlebag mount for larger HPAs
•
High-torque elevation motor
•
Through-pedestal cross-axis waveguide kit
•
Jog control or fully automatic auto-acquisition controllers
•
RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle
•
25ft (8m) RG59 coax and controller interconnect cables
•
Optional Transmit Rotary Joint on Feed
•
Limited function 3-axis jog controller with auto-stow
•
Optional aerodynamic cowlings
While the vast majority of military applications to date have relied on commercial satellite interoperability, especially at Ku-band, AvL is now leading the industry in the delivery of systems that will operate over the next generation of military satellites, including Xtar (X-band) and the new US Army Wideband Global Satellite (WGS) constellation (X- and Ka-band). Most of our military antennas can be offered with upgradability to X- and Ka-bands of operation.
AvL antennas interface easily with all RF systems and are compliant with FCC and Intelsat requirements for 2° spacing as well as optional models for meeting Eutelsat and Asiasat criteria. AvL antennas are also in the certification process for operation over the US Army DSCS and WGS satellites.
|
