NJRC_NJS8486HN New Japan Radio PLL LNB +/- 10 ppm (Palapa: 3,4 to 4,2 GHz) Low Noise Block Internal Reference N-Type Connector

NJRC_NJS8486HN New Japan Radio PLL LNB +/- 10 ppm (Palapa: 3,4 to 4,2 GHz) Low Noise Block Internal Reference N-Type Connector

New Japan Radio NJRC NJS8486HN PLL LNB (Palapa: 3.4 to 4.2 GHz) Low Noise Block Internal Reference N-Type Connector

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

• Connector Option: N-Type, Female (50 ohm)
• Low Noise Temperature: 15 K
• Local Stability: +/- 10 ppm ( 50 kHz typ. )
• Local Switchng Line-up
• Small Size & Light Weight
• RoHS Compliance

Product Code: NJRC_NJS8486HN
$179.00

New Japan Radio NJRC NJS8486HN PLL LNB +/- 10 ppm (Palapa: 3.4 to 4.2 GHz) Low Noise Block Internal Reference N-Type Connector

New Japan Radio NJRC NJS8486HN PLL LNB (Palapa: 3.4 to 4.2 GHz) Low Noise Block Internal Reference N-Type Connector Product Picture, Image, Price, Pricing


Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.


Summary of Features:

RF Frequency 3.4 to 4.2 GHz (Palapa C-band)
IF Frequency 950 to 1,750 MHz
Local Frequency 5.15 GHz
Input Interface Waveguide, CPR229 (with Groove)
Output Interface N-type, female (50 ohm)
Noise Temperature (Ta.: +25 C) 15 K typ., 30 K max
Linear Gain (Ta.: +25 C) 59 dB min., 66 dB typ.
Input Voltage +24 VDC (+12 to +24 VDC)
Current Drain 350 mA max
Weight 800 g [1.76 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJS8486HN PLL LNB +/- 10 ppm (Palapa: 3.4 to 4.2 GHz) Low Noise Block Internal Reference N-Type Connector



TYPICAL SPECIFICATIONS

RF Frequency 3.4 to 4.2 GHz (Palapa C-band)
IF Frequency 950 to 1,750 MHz
Local Frequency 5.15 GHz
Input Interface Waveguide, CPR229 (with Groove)
Output Interface N-type, female (50 ohm)
Noise Temperature (Ta.: +25 C) 15 K typ., 30 K max
Linear Gain (Ta.: +25 C) 59 dB min., 66 dB typ.

Local Stability +/-10.0 ppm (Ta.: -40 to +60 C)

L.O. Phase Noise
@ 100 Hz -70 dBc/Hz max.
@ 1 kHz -80 dBc/Hz max.
@ 10 kHz -85 dBc/Hz max.
@ 100 kHz -95 dBc/Hz max.

Spurious
Fixed frequency spur, unrelated to test CW signal (Measured at specified IF band). -140 dBm max.at input
With test CW signal -10 dBm IF output (Measured at specified IF band). -55 dBc max.

Input V.S.W.R. 3.0 : 1 typ.
Output V.S.W.R. 2.5 : 1 typ.
Power Requirement +24 VDC (+12 to +24 VDC)
Current Drain 350 mA max.

Mechanical & Environmental ▼
Temperature Range (ambient) -40 to +60 C (operating)
-40 to +80 C (storage)
Dimension & Housing
(without Interface Connectors)		 80.8 mm (L) x 99.6 mm (W) x 76 mm (H)
[3.18" (L) x 3.92" (W) x 2.99" (H)]
Weight 800 g [1.76 lbs]


Technical Specifications Diagram

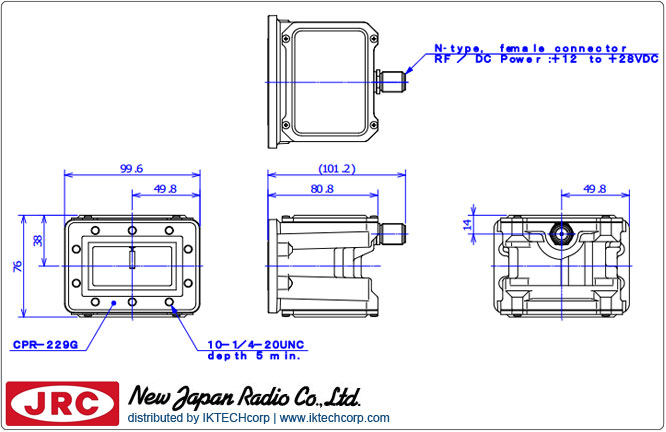

New Japan Radio NJRC NJS8486HN PLL LNB (Palapa: 3.4 to 4.2 GHz) Low Noise Block Internal Reference N-Type Connector Mechanical Diagram Drawing
