NJRC_NJT5207F New Japan Radio 4W Ku-Band (Universal 13,75 to 14,5 GHz) Block Up Converter BUC F-Type Connector Input

NJRC_NJT5207F New Japan Radio 4W Ku-Band (Universal 13,75 to 14,5 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT5207N 4W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

• RF Frequency
13.75 to 14.5 GHz (Universal Ku-Band)
• High Efficiency Output Power (P1dB):
P1dB: +36 dBm min. over temperature
Power Consumption: 37 W max.
• Small Size & Light Weight
• LED Indicator Equipped
• RoHS Compliance

Product Code: NJRC_NJT5207F
$535.00

New Japan Radio NJRC NJT5207F 4W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT5207F 4W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input Product Picture, Image, Price, Pricing


Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.



Summary of Features:


RF Frequency

13.75 to 14.5 GHz (Universal Ku-Band)

Output Interface

Waveguide, WR75

Input Interface

F-type, female (75 ohm)

Output Power @ 1 dB G.C.P.

+36 dBm min. over temperature

Linear Gain

62 dB nom., 56 dB min.

Power Requirement

+24 VDC (+15 to +30 VDC)

Power Consumption

37 W max.

Weight

1.7 kg [3.7 lbs]


Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT5207F 4W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input



TYPICAL SPECIFICATIONS



Output Frequency Range

13.75 to 14.5 GHz (Universal Ku-Band)

IF Frequency

950 to  1,700 MHz

Output Interface

Waveguide, WR75 (with Groove)

Input Interface

F-type, female (75 ohm)



Output Power @ 1dB G.C.P.

+36 dBm min. over temperature

Linear Gain

62 dB nom., 56 dB min.

ACPR

26 dBc @ Pout = +35 dBm


Requirement for External Reference
Frequency 10 MHz (sine-wave)
Input Power

-5 to +5 dBm @ Input port


Phase Noise



@ 100 Hz -125 dBc/Hz max.
@ 1 kHz -135 dBc/Hz max.
@ 10 kHz -140 dBc/Hz max.


L.O. Phase Noise



@ 100 Hz -60 dBc/Hz max.

@ 1 kHz

-70 dBc/Hz max.

@ 10 kHz

-80 dBc/Hz max.

@ 100 kHz

-90 dBc/Hz max.



Receive Band Noise Density @ Pout <= +36 dBm

[Tx: 13.75 to 14 GHz]

-156 dBm/Hz max. @10.95 to 12.25 GHz

  -152 dBm/Hz max. @12.25 to 12.75 GHz


Input V.S.W.R.

2 : 1 max.

Output V.S.W.R.

2 : 1 max.

Power Requirement

+24 (+15 to +30 VDC) / 37 W Max.

Power Consumption

37 W max.

Mute

Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

LED Indicator

Green: L.O. locked / RED: L.O. unlocked or no 10MHz reference signal


Mechanical & Environmental

Temperature Range (ambient)

-40 to +55 C (operating)
-40 to +75 C (storage)

Dimension & Housing (without Interface Connectors)

175.9 (L) x 143 (W) x 56.5 (H) mm
[6.26” (L) x 5.63” (W) x 2.22” (H)]

Weight

1.7 kg [3.7 lbs]



Technical Specifications Diagram

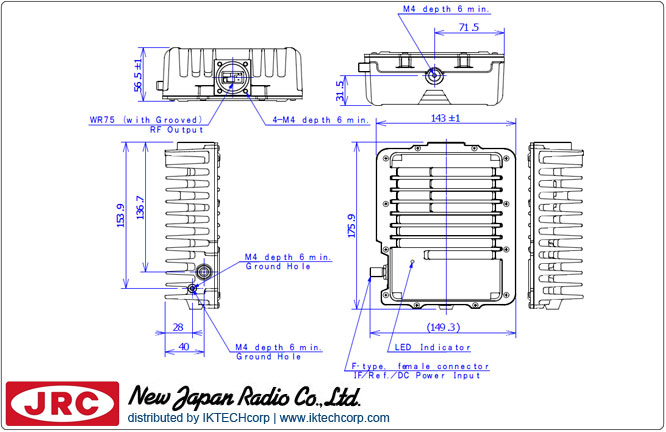

New Japan Radio NJRC NJT5207F 4W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input Mechanical Diagram Drawing



Compliance Standard

Inquire
