NJRC_NJT5670N New Japan Radio 5W C-Band (Insat 6,725 to 7,025 GHz) Block Up Converter BUC N-Type Connector Input
New Japan Radio NJRC NJT5670N 5W C-Band (Insat 6.725 to 7.025 GHz) Block Up Converter BUC N-Type Connector Input
• RF Frequency
6.725 to 7.025 GHz (Insat C-band)
• High Efficiency Output Power (P1dB)
+37 dBm min. over temperature
• Lower Power Consumption
• Small Size & Light Weight
• LED Indicator Equipped
• RoHS Compliance
Product Code: NJRC_NJT5670N
$1,129.00 $835.00
New Japan Radio NJRC NJT5670N 5W C-Band (Insat 6.725 to 7.025 GHz) Block Up Converter BUC N-Type Connector Input
 |
|
|
Summary |
|
|
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
|
|
| Summary of Features: | |
| RF Frequency | 6.725 to 7.025 GHz (Insat C-band) |
| IF Frequency | 965 to 1,265 MHz |
| Local Frequency | 5.76 GHz |
| Output Interface | Waveguide, CPR137 (with Groove) |
| Input Interface | N-type, female (50 ohm) |
| Output Power @ 1 dB G.C.P. | +37 dBm min. over temperature |
| Linear Gain | 61 dB nom. |
| Power Requirement | +24 VDC (+15 to +30 VDC) |
| Power Consumption | 48 W max. |
| Weight | 1.9 kg [4.2 lbs] |

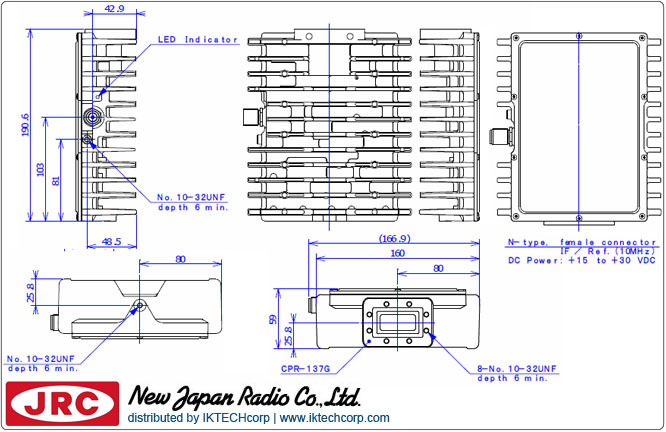

| Technical Specifications Diagram | |
| See "Technical Specifications" Tab | |
