NJRC_NJT5760N New Japan Radio 8W C-Band (Standard 5,85 to 6,425 GHz) Block Up Converter BUC N-Type Connector Input

New Japan Radio NJRC NJT5760N 8W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

• RF Frequency
5.85 to 6.425 GHz (Standard C-band)
• DC Power applied on IF Connector
• High Efficiency & Low Distortion
P1dB: +49 dBm min. over temperature
IM3: -28 dBc @ Pout = +39 dBm -3dB
• Wider Input Voltage Range
Voltage Range: +18 to +60 VDC
• Lower Power Consumption
Power Consumption: 69 W
• Small Size & Light Weight
Weight: 3.2 kg [7.0 lbs]
• LED Indicator Equipped
• RoHS Compliance

Product Code: NJRC_NJT5760N

$2,300.00 $1,749.00

Qty

New Japan Radio NJRC NJT5760N 8W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input



Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
Summary of Features:

RF Frequency	5.85 to 6.425 GHz (Standard C-band)
IF Frequency	950 to 1,525 MHz
Local Frequency	4.90 GHz
Output Interface	Waveguide, CPR137 (with Groove)
Input Interface	N-type, female (50 ohm)
Output Power @ 1 dB G.C.P.	+10 dBm min. over temperature
Linear Gain	63 dB nom.
Power Requirement	+24 / +48 VDC (+18 to +60 VDC) [DC Power Oparating]
Power Consumption	63 W typ., 75W max.
Weight	3.2 kg [7.0 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT5760N 8W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input

TYPICAL SPECIFICATIONS

RF Frequency	5.85 to 6.425 GHz (Standard C-band)
IF Frequency	950 to 1,525 MHz
Local Frequency	4.90 GHz
Output Interface	Waveguide, CPR137
Input Interface	N-type, female (75 ohm)
Output Power @ 1 dB G.C.P.	+10 dBm min. over temperature
Linear Gain	63 dB nom.

*Requirement for External Reference* ▼
Frequency	10 MHz (sine-wave)
Input Power	-5 to +5 dBm @ Input port

Phase Noise
@ 100 Hz	-125 dBc/Hz max.
@ 1 kHz	-135 dBc/Hz max.
@ 10 kHz	-140 dBc/Hz max.

L.O. Phase Noise
@ 100 Hz	-60 dBc/Hz max.
@ 1 kHz	-70 dBc/Hz max.
@ 10 kHz	-80 dBc/Hz max.
@ 100 kHz	-90 dBc/Hz max.

Receive Band Noise Density	-87 dBm/4kHz max.
Input V.S.W.R.	2.0 : 1 max.
Output V.S.W.R.	2.0 : 1 max.
Power Requirement	+24 / +48 VDC (+18 to +60 VDC)
Power Consumption	63 W typ., 75 W max.
Mute	Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.
LED Indicator	GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
Port for Voltage Input	Same as IF Connector

*Mechanical & Environmental* ▼
Temperature Range (ambient)	-40 to +55 C (operating) -40 to +75 C (storage)
Dimension & Housing ( without Interface Connectors )	219.5 mm (L) x 175 mm (W) x 99 mm (H) [8.64” (L) x 6.89” (W) x 3.90” (H)]
Weight	3.2 kg [7.0 lbs]

Technical Specifications Diagram

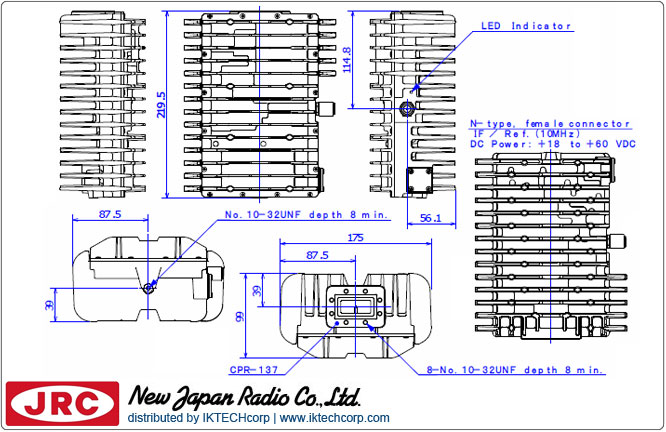

New Japan Radio NJRC NJT5760N 8W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input Mechanical Diagram Drawing

Compliance Standard

Inquire

New Japan Radio NJRC NJT5669 Datasheet (327.76KB)
