NJRC_NJT8301UN New Japan Radio 1,5W Ku-Band (Universal 13,75 to 14,5 GHz) Block Up Converter BUC N-Type Connector Input

New Japan Radio NJRC NJT8301N 1.5W Ku-Band (Standard 14.0 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

• RF Frequency
13.75 to 14.5 GHz (Universal Ku-Band)

• Super High Efficiency & Low Distortion
P1dB: +31 dBm min. over temperature
ACPR: -26 dBc @ Pout = +31 dBm
Power Consumption: 12 W

• Low Distortion (ACPR)
26 dBc min. @ +30.5 dBm output power

• Smallest Size & Lightest Weight
Dimension: 91.55 x 68 x 42.5 mm
Weight: 350 g

• RoHS Compliance

Product Code: NJRC_NJT8301UN

$259.00 $195.00

Qty

New Japan Radio NJRC NJT8301UN 1.5W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input



Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
Summary of Features:

RF Frequency	13.75 to 14.5 GHz (Universal Ku-Band)
Output Interface	Waveguide, WR75 with Groove
Input Interface	N-type, female (50 ohm)
Output Power @ 1dB G.C.P.	+31 dBm min. over temperature
Linear Gain	55 dB typ., 48 dB min.
Power Requirement	DC Power, +24 V (Range: +12 to +30 V)
Power Consumption	12 W typ., 14 W max. @ Pout = +31 dBm
	11 W max. @ No IF and +25 °C
	2 W max. @ 10 MHz Reference Off (Mute on)
Weight	350 g [0.77 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8301UN 1.5W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input

TYPICAL SPECIFICATIONS

RF Frequency	13.75 to 14.5 GHz (Universal Ku-Band)
Output Interface	Waveguide, WR75 with Groove
Input Interface	N-type, female (50 ohm)
Output Power @ 1dB G.C.P.	+31 dBm min. over temperature
Linear Gain	55 dB typ., 48 dB min.
ACPR	-26 dBc typ. @ Pout = +31 dBm

*Requirement for External Reference* ▼
Frequency	10 MHz (sine-wave)
Input Power	-5 to +5 dBm @ Input port

Phase Noise
@ 100 Hz	-125 dBc/Hz max.
@ 1 kHz	-135 dBc/Hz max.
@ 10 kHz	-140 dBc/Hz max.

L.O. Phase Noise
@ 100 Hz	-60 dBc/Hz max.
@ 1 kHz	-70 dBc/Hz max.
@ 10 kHz	-80 dBc/Hz max.
@ 100 kHz	-90 dBc/Hz max.
@ 1 MHz	-100 dBc/Hz max.

Receive Band Noise Density	156 dBm/Hz max. @ 10.95 to 12.75 GHz
Input V.S.W.R.	2 : 1 max.
Output V.S.W.R.	2 : 1 max.
Power Requirement	DC Power, +24 V (Range: +12 to +30 V)
Power Consumption	12 W typ., 14 W max. @ Pout = +31 dBm
	11 W max. @ No IF and +25 °C
	2 W max. @ 10 MHz Reference Off (Mute on)
Mute	Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

*Mechanical & Environmental* ▼
Temperature Range (ambient)	Operating: -40 to +55 °C Storage: -40 to +75 °C
Humidity	0 to 100 %
Altitude	15,000 feet [4572 m]
Dimension & Housing	91.55 (L) x 68 (W) x 42.5 (H) mm [3.60” (L) x 2.68” (W) x 1.67” (H)] without interface connector
Weight	350 g [0.77 lbs]

Technical Specifications Diagram

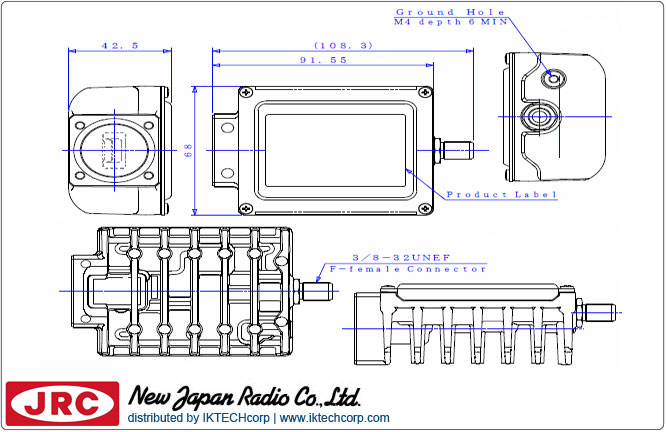

New Japan Radio NJRC NJT8301UN 1.5W Ku-Band (Universal 13.75 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input Mechanical Diagram Drawing

Compliance Standard

Inquire

New Japan Radio NJRC NJT8301N 1.5W Ku-Band Datasheet (375.76KB)
