VIKING FLT-KUTRF_HP Terrestrial Interference Bandpass Filter, Ku Band (10,70 – 12,75GHz), High Power

VIKING FLT-KUTRF_HP Terrestrial Interference Bandpass Filter, Ku Band (10,70 – 12,75GHz), High Power

VIKING FLT-KUTRF_HP Terrestrial Interference Bandpass Filter, Ku Band (10.70 – 12.75GHz), High Power

IKtechcorp is the distributor for Viking SATCOM, a leading manufacturer and supplier of commercial satellite equipment. Viking SATCOM offers a wide range of products used in the VSAT, DTH, COTM, Mobile, TVRO, Educational, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, earth station, RF, prodelin, motorized auto point, vehicle antennas. Also featuring beacon receivers, de-icing systems, dehydrators, feeds, filters, mountss, redundant systems, snow covers etc.

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Receive-Only antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.


Product Code: VIKING_FLT-KUTRF_HP
Call for price

VIKING FLT-KUTRF_HP Terrestrial Interference Bandpass Filter, Ku Band (10.70 – 12.75GHz), High Power

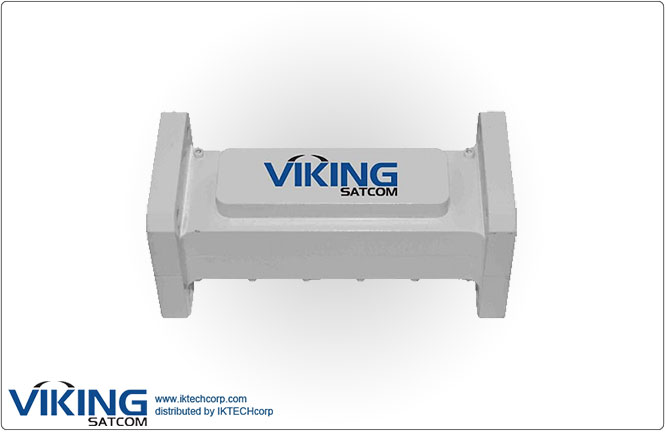

VIKING FLT-KUTRF_HP Ku Band Transmit Reject Filter (10.70 – 12.75GHz), High Power Product Picture, Price, Image, Pricing


Summary

VIKING FLT-KUTRF_HP Ku Band Transmit Reject Filter (10.70 – 12.75GHz), High Power

Designed for full (universal) Ku-band operation, this TRF provides deep rejection of the transmit band with minimal effect on the receive band.

VIKING FLT-KUTRF_HP Feature:
• Ku Band Transmit Reject Filter, High Power
• Ideal for High Power VSAT Applications
• Provides Deep Rejection of the transmit band with minimal effect on the receive band
• Passband:   10.70 - 12.75 GHz
• Reject Band:  13.75 - 14.50 GHz
• Rejection:  100 dB Typ; 90 dB Min
• Insertion Loss:  0.1 dB Max
• VSWR:  1.20:1 Max
• Flanges:  WR75 Cover / WR75 Grooved (alternate flange configurations available)



Technical Specifications Diagram
See "Specifications" Tab

VIKING FLT-KUTRF_HP Terrestrial Interference Bandpass Filter, Ku Band (10.70 – 12.75GHz), High Power



TYPICAL SPECIFICATIONS




Passband

10.95 - 12.75GHz

Insertion Loss

0.1 dB Max

VSWR

1.20:1 Max

Reject Band

13.75 - 14.50 GHz

Rejection

100 dB Typ; 90 dB Min

Operating Temperature

-55° C to +70° C

Flanges

WR75 Cover / WR75 Grooved (alternate flange configurations available)
Dimension 3.25" x 1.5" x 1.5" / 82mm x 38mm x 38mm
Finish Gloss White Lacquer


Technical Specifications Diagram

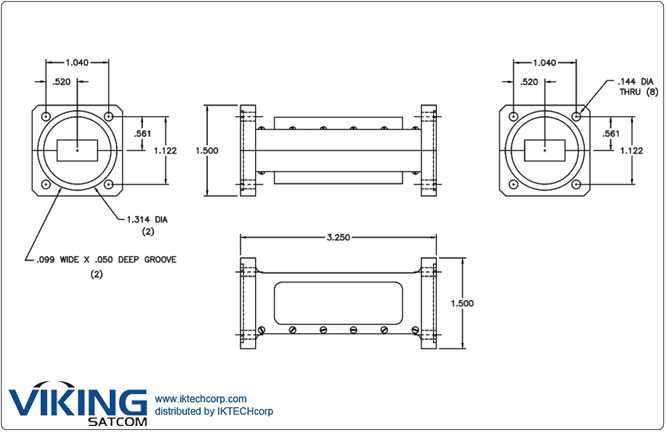

VIKING FLT-KUTRF_HP Ku Band Transmit Reject Filter (10.70 – 12.75GHz), High Power Product Picture, Price, Image, Pricing Mechanical Diagram


Compliance Standard

Inquire
