VIKING FLT-MFC12086-2 Terrestrial Interference C-Band Transmit Reject Filter (3,625 – 4,200 GHz)

VIKING FLT-MFC12086-2 Terrestrial Interference C-Band Transmit Reject Filter (3,625 – 4,200 GHz)

VIKING FLT-MFC12086-2 Terrestrial Interference C-Band Transmit Reject Filter (3.625 – 4.200 GHz)

IKtechcorp is the distributor for Viking SATCOM, a leading manufacturer and supplier of commercial satellite equipment. Viking SATCOM offers a wide range of products used in the VSAT, DTH, COTM, Mobile, TVRO, Educational, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, earth station, RF, prodelin, motorized auto point, vehicle antennas. Also featuring beacon receivers, de-icing systems, dehydrators, feeds, filters, mountss, redundant systems, snow covers etc.

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Receive-Only antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.


Product Code: VIKING_FLT-MFC12086-2
Call for price

VIKING FLT-MFC12086-2 Terrestrial Interference C-Band Transmit Reject Filter (3.625 – 4.200 GHz)

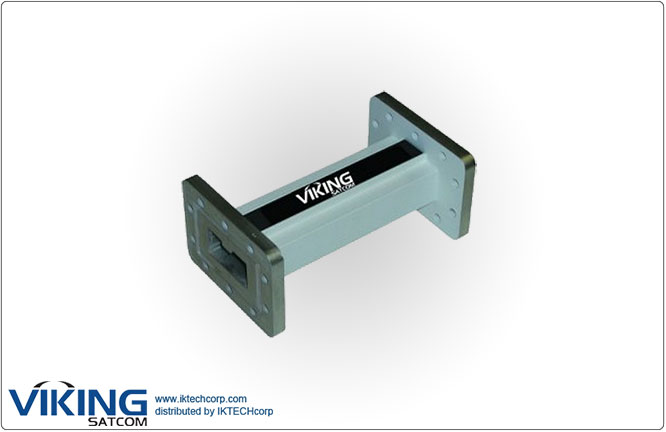

VIKING FLT-MFC12086-2 C band Transmit Reject Filters (3.625 – 4.200 GHz) Product Picture, Price, Image, Pricing


Summary

VIKING FLT-MFC12086-2 Terrestrial Interference C-Band Transmit Reject Filter (3.625 – 4.200 GHz)

The series 12086 is a family of transmit rejection filters specifically addressing the SATCOM (C-Band) market. The device is installed between the antenna and the LNB in the receive segment of satellite earth terminals. It is also used in C-band transceiver applications to isolate up-link and down-link signals. The unit offers extremely low loss, typically less that 0.04 dB on receive signals while providing a high degree of transmit rejection ranging from 50 to 80 dB, depending upon the model. All units come standard with CPRG229 flanges. Alternate configurations are available upon request.

VIKING FLT-MFC12086-2 Feature:
• C Band Transmit Reject Filters
• Low Loss while providing high degree of transmit rejection
• Passband Options:
- 3.7 - 4.2 GHz (FLT-MFC-12086-1 or FLT-MFC-12086-XR-1)
- 3.625 - 4.2 GHz (FLT-MFC-12086-2 or FLT-MFC-12086-XR-2)
- 3.4 - 4.2 GHz (FLT-MFC-12086-3 or FLT-MFC-12086-XR-3)



Technical Specifications Diagram
See "Specifications" Tab

VIKING FLT-MFC12086-2 Terrestrial Interference C-Band Transmit Reject Filter (3.625 – 4.200 GHz)



TYPICAL SPECIFICATIONS



Waveguide Size WR-229

Frequency

3.625 – 4.200 GHz

Insertion Loss

0.06 dB Max

WSWR 1.15:1 Max

Rejection

5.850 - 6.425 GHz

Attenuation

70 dB Typ.
Dimensions 6.37" x 3.88" x 2.75" (162mm x 98mm x 70mm)
Weight 0.95 lbs (0.43 kg)
Finish Gray Lacquer
* Half gasket is supplied with each model.

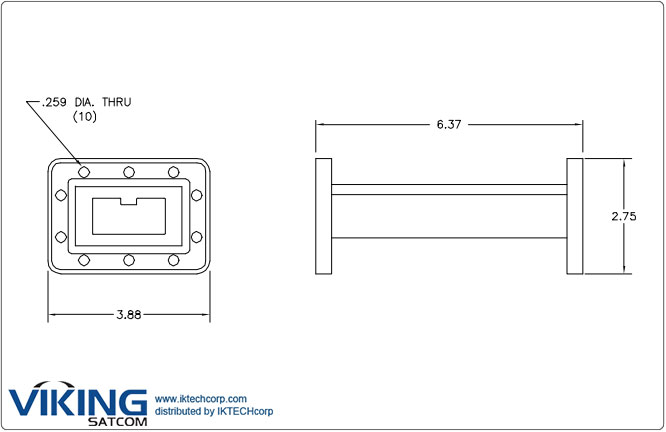

Technical Specifications Diagram


VIKING FLT-MFC12086-2 C band Transmit Reject Filters (3.625 – 4.200 GHz) Product Picture, Price, Image, Pricing Mechanical Diagram


Compliance Standard

Inquire
