VIKING FLT-MFC7894D Terrestrial Interference C-Band Radar Elimination Filter

VIKING FLT-MFC7894D Terrestrial Interference C-Band Radar Elimination Filter

VIKING FLT-MFC7894D Terrestrial Interference C-Band Radar Elimination Filter

IKtechcorp is the distributor for Viking SATCOM, a leading manufacturer and supplier of commercial satellite equipment. Viking SATCOM offers a wide range of products used in the VSAT, DTH, COTM, Mobile, TVRO, Educational, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, earth station, RF, prodelin, motorized auto point, vehicle antennas. Also featuring beacon receivers, de-icing systems, dehydrators, feeds, filters, mountss, redundant systems, snow covers etc.

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Receive-Only antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.


Product Code: VIKING_FLT-MFC7894D
Call for price

VIKING FLT-MFC7894D Terrestrial Interference C-Band Radar Elimination Filter

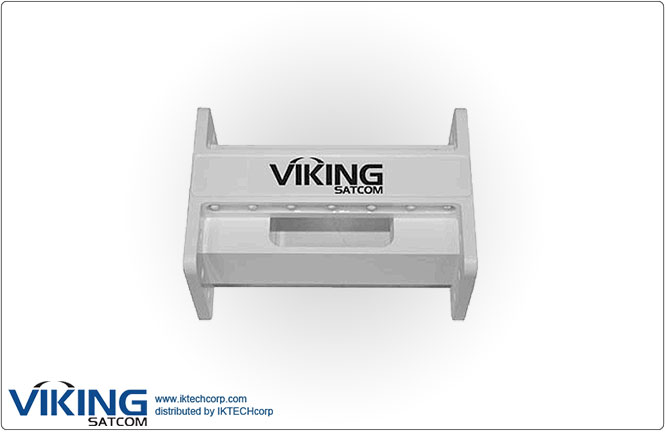

VIKING FLT-MFC7894D TI Filter, C Band Radar Elimination Filter Product Picture, Price, Image, Pricing


Summary

VIKING FLT-MFC7894D Terrestrial Interference C-Band Radar Elimination Filter

A premium, copper-constructed bandpass 7894D achieves the lowest VSWR of any u C-band BPF available in the industry. Since low VSWR = more available signal ideal for eliminating WiMAX, RADAR and of interference in fringe or weak signal a be used to optimize antenna performance a (3.7-4.2 GHz) receive site. Extended band (3.6-4.2 GHz) and Super (3.4-4.2 GHz) versions are also available.

VIKING FLT-MFC7894D Feature:
• C Band High Performance Terrestrial Interference Filter
• Passband: 3.7 - 4.2 GHz
• Lowest VSWR: 1.29:1 Max (Low VSWR = more avilable signal)
• Ideal for eliminating WiMAX or Radar in fringe or weak signal areas
• Extended band (3.6 - 4.2GHz) and Super Extended band (3.4 - 4.2GHz) Options Available



Technical Specifications Diagram
See "Specifications" Tab

VIKING FLT-MFC7894D Terrestrial Interference C-Band Radar Elimination Filter



TYPICAL SPECIFICATIONS




Passband

3.7 - 4.2 GHz

Insertion Loss

<0.4 dB Approx @ Center Band
0.5 dB Roll off @ Band Edges

Group Delay Variation 8 ns Max

VSWR

1.29:1 Max

Return Loss 18dB Min

Rejection

3.65 / 4.25 GHz
3.55 / 4.35 GHz
3.50 / 4.40 GHz

Transmit Band Rejection >70 Db Typ from 5.8 - 6.725 GHz

Flanges

CPR229G, CPR229F

Dimensions 5 3/4" x 2 7/8" x 2 3/4" / 146mm x 98mm x 70mm
Weight 2.6 lbs (1.2 kg)
Finish Gray Lacquer
* Half gasket is supplied with each model.

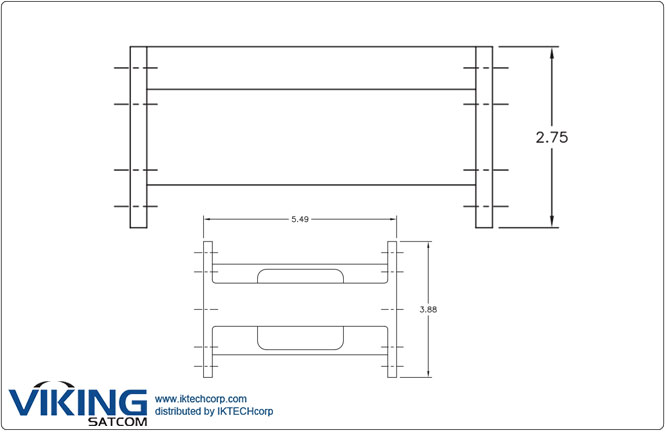

Technical Specifications Diagram


VIKING FLT-MFC7894D TI Filter, C Band Radar Elimination Filter Product Picture, Price, Image, Pricing Mechanical Diagram


Compliance Standard

Inquire
