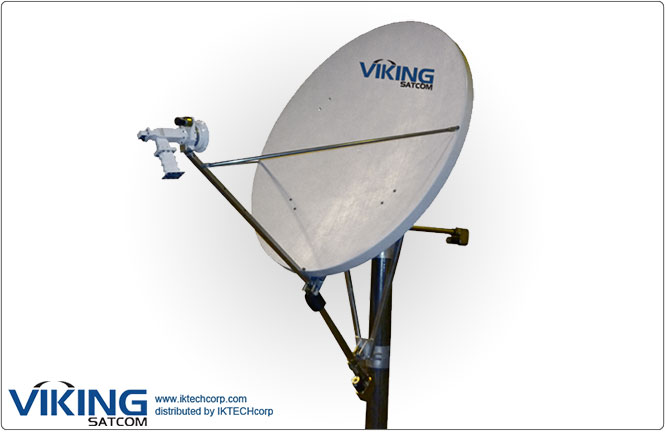

VIKING P-180KU Prodelin 1,8 meter Ku Band TX RX VSAT Transmit Receive Antenna (Prodelin Series 1183)
VIKING P-180KU Prodelin 1.8 meter Ku Band TX RX VSAT Transmit Receive Antenna (Prodelin Series 1183)
Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Transmit/Receive (Tx/Rx) )antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.
VIKING P-180KU Prodelin 1.8 meter Ku Band TX RX VSAT Transmit Receive Antenna (Prodelin Series 1183)
 |
||
Summary |
||
VIKING P-180KU Prodelin 1.8 meter Ku Band TX RX VSAT Transmit Receive Antenna VIKING P-180KU Feature:
|
||
| Summary of Features: | Series 1183 Ku-Band | |
Antenna Size |
|
1.8 M (71 in.) |
Operating Frequency (GHz) |
|
|
Receive |
|
10.95 - 12.75 GHz |
Midband Gain ( +/- .5dB) |
|
|
Receive |
|
45.20 dBi |
Antenna Noise Temperature |
||
10° Elevation |
|
44 K |
Sidelobe Envelope |
|
|
1° ≤ q ≤ 20° |
|
29 - 25 Log dBi |
20° < q ≤ 26.3° |
|
+8 dBi |
26.3° < q ≤ 48° |
|
32 - 25 Log dBi |
48° < q |
|
-10 dBi (averaged) |
| Cross-Polarization (Linear) | >30 dB on axis | |
| Axial Ratio (Circular) | ||
| Receive Transmit |
. | N/A N/A |
VSWR |
|
1.3:1 Max. |
| Feed Interface | ||
| Receive Transmit |
Available in a variety of designs Available in a variety of designs |
|
| Technical Specifications Diagram | ||
| Inquire | ||
