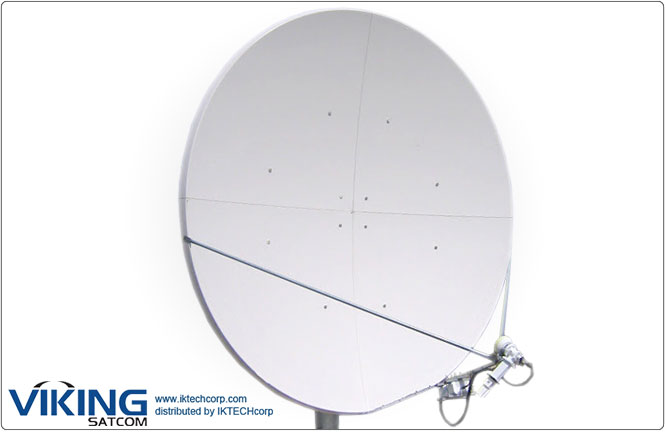

VIKING P-380CC 3,8 meter C Band Cirular Intelsat TX RX VSAT Transmit Receive Antenna (Prodelin Series 1385)

VIKING P-380CC 3.8 meter C Band Cirular Intelsat TX RX VSAT Transmit Receive Antenna (Prodelin Series 1385)

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Transmit/Receive (Tx/Rx) )antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.

Product Code: VIKING_P-380CC

Call for price

VIKING P-380CC 3.8 meter C Band Cirular Intelsat TX RX VSAT Transmit Receive Antenna (Prodelin Series 1385)



Summary
VIKING P-380CC 3.8 meter C Band Cirular Intelsat TX RX VSAT Transmit Receive Antenna Prodelin Series 1385 VIKING P-380CC Feature: • 3.8 Meter Offset Transmit Receive Antenna • Intelsat Type Approved - C Linear and C Circular • Reflector Material - Glass Fiber Reinforced SMC • 4 Piece Reflector Design for Maximum Shipping Efficiencies • Increased Strength for Heavier ODU Equipment Loads • Upgradable for High XPD Performance • X Band Feed Options
Summary of Features:		C-Band Circular

Antenna Size		3.8 Meter
Operating Frequency (GHz)
Receive Transmit		3.625 - 4.20 GHz 5.845 - 6.425 GHz
Midband Gain ( +/- .2dB)
Receive Transmit		41.80 dBi 46.30 dBi
VSWR
Receive Transmit		1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB)
Pattern Beamwidth (in degrees at midband)
-3 dB -15 dB		Rx 1.40 deg Tx 0.90 deg Rx 3.20 deg Tx 2.00 deg
Sidelobe Envelope
1° ≤ q ≤ 20°		29 - 25 Log dBi
20° < q ≤ 26.3°		-3.5 dBi
26.3° < q ≤ 48°		32 - 25 Log dBi
48° < q		-10 dBi (averaged)

Note: In receive portion of C-band only, sidelobe envelope specified from 100/D rather than 1°

Antenna Noise Temperature
5° Elevation 10° Elevation 20° Elevation 40° Elevation		62 K 52 K 45 K 43 K
Power Handling		1 kW
Cross Polarization Isolation (Linear) On Axis
On Axis Within 1.0 dB Beamwidth		Rx > 15.00 dB Tx > 17.70 dB Rx > 15.00 dB Tx > 17.70 dB

Note: Standard C-band Circular polarization in Tx-Band provides an axial ratio of 1.3 (XPD equivalence of 17.7 dB). Optional F-1 station feedavailable with axial ratio of 1.09 (XPD equivalence > 27.3 dB) in Tx band. Call factory when specifying this option. X Band filters available upon request.

Output Waveguide Interface Flange
Receive Transmit		CPR 229 F CPR 137 or Type N
Technical Specifications Diagram
Inquire

VIKING P-380CC 3.8 meter C Band Cirular Intelsat TX RX VSAT Transmit Receive Antenna (Prodelin Series 1385)

ELECTRICAL

Antenna Size	3.8 Meter
*Operating Frequency (GHz)*
Receive Transmit	3.625 - 4.20 GHz 5.845 - 6.425 GHz
*Midband Gain ( +/- .2dB)*
Receive Transmit	41.80 dBi 46.30 dBi
*VSWR*
Receive Transmit	1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB)
*Pattern Beamwidth (in degrees at midband)*
-3 dB -15 dB	Rx 1.40 deg Tx 0.90 deg Rx 3.20 deg Tx 2.00 deg
*Sidelobe Envelope*
1° ≤ q ≤ 20°	29 - 25 Log dBi
20° < q ≤ 26.3°	-3.5 dBi
26.3° < q ≤ 48°	32 - 25 Log dBi
48° < q	-10 dBi (averaged)

Note: In receive portion of C-band only, sidelobe envelope specified from 100/D rather than 1°

*Antenna Noise Temperature*
5° Elevation 10° Elevation 20° Elevation 40° Elevation	62 K 52 K 45 K 43 K
Power Handling	1 kW
*Cross Polarization Isolation (Linear) On Axis*
On Axis Within 1.0 dB Beamwidth	Rx > 15.00 dB Tx > 17.70 dB Rx > 15.00 dB Tx > 17.70 dB

Note: Standard C-band Circular polarization in Tx-Band provides an axial ratio of 1.3 (XPD equivalence of 17.7 dB). Optional F-1 station feedavailable with axial ratio of 1.09 (XPD equivalence > 27.3 dB) in Tx band. Call factory when specifying this option. X Band filters available upon request.

*Output Waveguide Interface Flange*
Receive Transmit	CPR 229 F CPR 137 or Type N

MECHANICAL SPECIFICATIONS

Reflector Material	Glass Fiber Reinforced Polyester SMC
Antenna Optics	Easy-to-assemble, 4 Pc., Offset Fed Prime Focus Design with 0.6 F/D optics.
Mast Pipe Size	10” SCH 40 Pipe (10.75” OD) 27.3 cm.
Elevation Adjustment Range	12° to 90° or 0° to 15° for Polar Latitudes
Azimuth Adjustment Range	360° Continuous with +/- 35° Fine Adjustment
Shipping Specifications
Approx. Net Weight Approx. Packaged Weight	Weight (nominal) 1125 lbs. (511 Kg.) Weight (nominal) 1882 lbs., (855 Kg.)

ENVIRONMENTAL PERFORMANCE

Wind Loading
Operational Survival	50 mph (80 km/h) 125 mph (201 km/h)
Temperature (Operational)	-40° to 140° F (-40° to 60° C)
Rain (operational)	½” (13mm) per hour
Ice (operational)	---
Atmospheric Conditions	Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
Relative Humidity	0 to 100% Condensing
Solar Radiation	360 BTU/h/ft2

Technical Specifications Diagram

Inquire

Compliance Standard

Inquire

VIKING P-380KU Prodelin Antenna Datasheet (420.1KB)
