NJRC_NJT8318UNMK New Japan Radio 8W Ku-Band (Universal 13,75 to 14,5GHz) Block Up Converter M&C BUC N-Type Connector Input

• FSK 通信监控
• 运行保证温度范围
• 高效率低失真
P1dB：+39 dBm min. 超温
IM3：-28 dBc @ Pout = +36 dBm
功耗：最大 90 W.
• 体积小，重量轻
• 配备 LED 指示灯

em>• 运行保证温度范围
• 高效率和低失真
P1dB：+39 dBm min. 超温
IM3：-28 dBc @ Pout = +36 dBm
功耗：最大 90 W.
• 体积小，重量轻
• 配备 LED 指示灯

/strong>
• 高效率和低失真
P1dB：+39 dBm min. 超温
IM3：-28 dBc @ Pout = +36 dBm
功耗：最大 90 W.
• 体积小，重量轻
• 配备 LED 指示灯

型号: NJRC_NJT8318UNMK

$2,650.00

数量

New Japan Radio NJRC NJT8318UNMK 8W Ku-Band (Universal 13.75 to 14.5GHz) Block Up Converter M&C BUC N-Type Connector Input



Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
Summary of Features:

RF Frequency	13.75 to 14.5GHz (Universal Ku-band)
IF Frequency	950 to1,700 MHz
Local Frequency	12.80 GHz
Output Interface	Waveguide, WR75
Input Interface	N-type, female (50 ohm)
Output Power @ 1 dB G.C.P.	+39 dBm min. over temperature
Linear Gain	59 dB min.
Power Requirement	90 to 264 VAC [AC Power Oparating]
Power Consumption	79 W typ., 90 W max.
Weight	2.4 kg max. [5.3 lbs max.]

Technical Specifications Diagram
See "Technical Specifications" Tab

TYPICAL SPECIFICATIONS

RF Frequency	13.75 to 14.5GHz (Universal Ku-band)
IF Frequency	950 to1,700 MHz
Local Frequency	12.80 GHz
Output Interface	Waveguide, WR75 (with Groove)
Input Interface	N-type, female (50 ohm)
Output Power @ 1 dB G.C.P.	+39 dBm min. over temperature
Linear Gain	65 dB nom., 59 dB min.
IM3	-28 dBc typ., -24 dBc max. @ total power ≦ Pout – 3dB
ACPR	-28 dBc typ. @ Pout ≦ Pout – 1dB
Gain Stability Over Temperature	2 dBp-p typ., 5 dBp-p max.
Gain Variation Over Frequency	5 dBp-p max. over 500 MHz / 2 dBp-p max. over 36 MHz

L.O. Phase Noise ▼
@ 100 Hz	-60 dBc/Hz max.
@ 1 kHz	-70 dBc/Hz max.
@ 10 kHz	-80 dBc/Hz max.
@ 100 kHz	-90 dBc/Hz max.
@ 1 MHz	-100 dBc/Hz max.

Input V.S.W.R.	2.0 : 1 max.
Output V.S.W.R.	2.0 : 1 max.
Power Requirement	+18 to +60 VDC
Power Consumption @ No IF Signal	65 W typ.
Power Consumption @ P1dB	90 W max.
Mute	Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.
LED Indicator	GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
M&C Function	FSK Modulation M&C: Power Monitor / TX On/Off Control / Alarm … etc

*Mechanical & Environmental* ▼
Temperature Range (Operating)	-40 to +75 C (Operation Guarantee) -40 to +55 C (Performance Guarantee)
Temperature Range (Storage)	-40 to +75 C
Dimension & Housing	180 (L) x 130 (W) x 80 (H) mm [7.09” (L) x 5.12” (W) x 3.15” (H)] without interface connector and screws
Weight	2.4 kg max. [5.3 lbs max.]

Technical Specifications Diagram

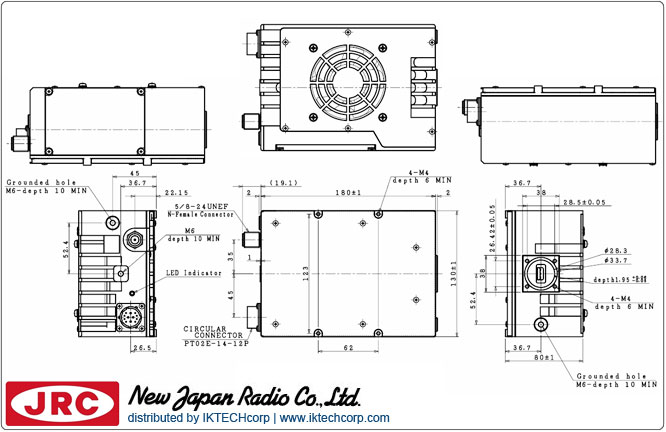

New Japan Radio NJRC NJT8318UNMK 8W Ku-Band (Universal 13.75 to 14.5GHz) Block Up Converter M&C BUC N-Type Connector Input Mechanical Diagram Drawing

Compliance Standard
